Product Description:
Overview:

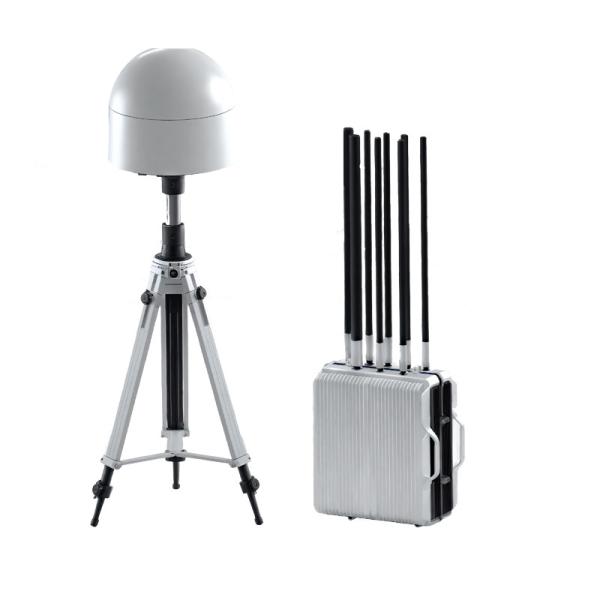

The integrated drone detection and countermeasure device detects, finds the direction and analyzes the characteristics of the drone image transmission and control link signals, and emits targeted interference signals accordingly, so as to achieve effective detection, direction finding, identification, positioning and interference of drones and remote controllers.
Key Benefits:
- UAV jamming latest DDS core algorithm provides powerful FM and FPV drone jamming.
- Comprehensive detection frequency coverage 70MHz-6GHz frequency coverage,
- complete drone model library to meet the needs of different customers
- Customizable strike frequency 8 common frequencies and 8 customized frequencies,
- covering 400MHZ-5.8GHZ
- Flexible networking platform can be separated and paired with other detection and strike
- equipment for coordinated operations
- 1+N efficient equipment linkage access to low-altitude defense platform, which can
- integrate radar, navigation equipment and observation
- Al self-learning equipped with drone signal acquisition module, which can autonomously
- learn and define feature libraries
- Reliable military-grade quality aviation aluminum fuselage, can operate at -40'C to +60'c
- Customized color and language
Technical Parameters:
| Model Number | HP-RCD-YT |
| Detection frequency range | 70MHz-6GHz full band 400MHZ,800MHz,900MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHzKey detection |
| Detection distance | 5~10km |
| Reconnaissance airspace | 360°full airspace |
| Direction Measuring Accuracy | ≤ 10 degrees (follow); ≤ 3 degrees (hover) |
| Defense frequency bands | 800 MHZ,900MHZ,1.2GHZ,1.4GHZ,1.5GHz,2.4GHZ,5.2GHz,5.8GHZ Expandable defense band range400MHz-6GHz full band |
| Counteraction airspace | 360°full airspace |
| Counteraction distance | 3km |
| Protection Grade | IP66 |
| Weight | 15kg+25kg |
| Dimensions | 666mm'400mm (height ,radius),/500mm'460mm'233mm(length * width " height) |
| Operating Temperature | -40℃~70℃ |
| Continuous operation capability | Can work 24 hours a day |
Applications:
- Land Border Surveillance
- Sea Surface Surveillance
- Fortress Protection
- Battlefield reconnaissancesign
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
